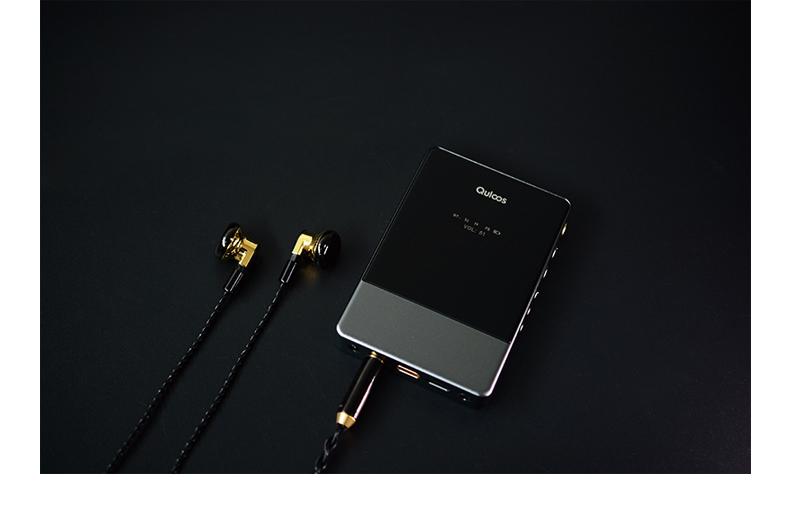

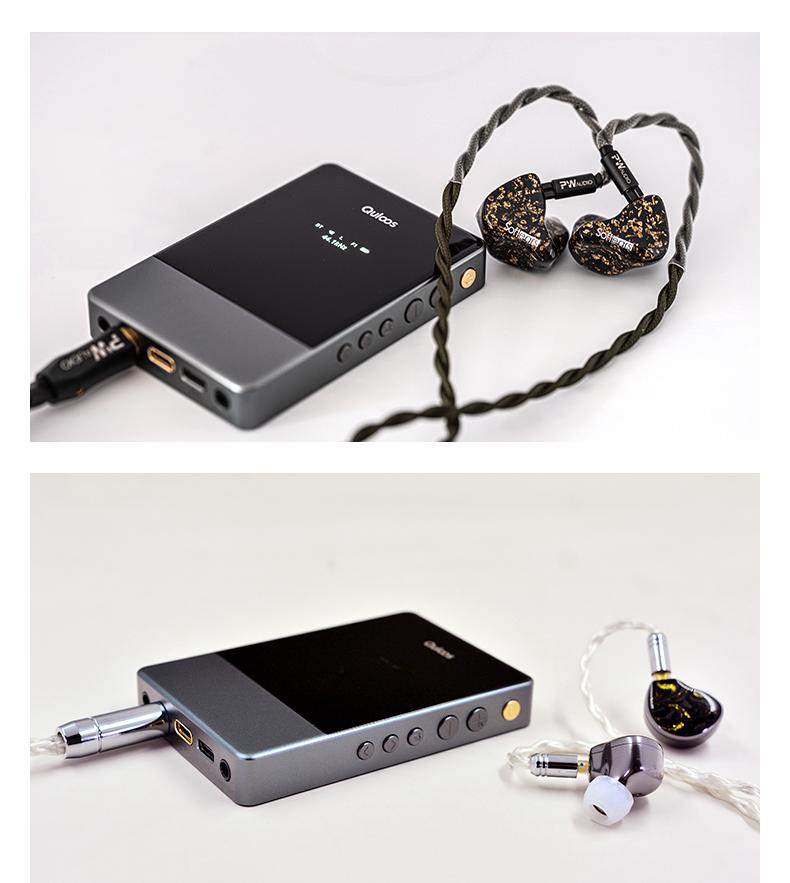

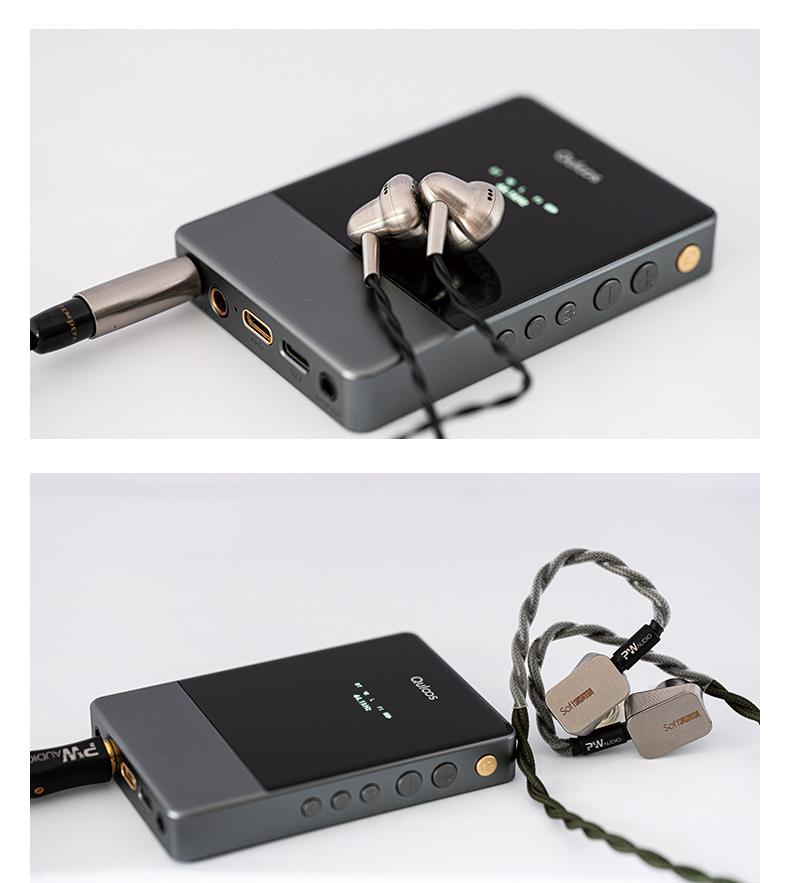

MUB1 Portable HiFi USB and Bluetooth DAC & Headphone Amp
Battery local pure power supply | 1100mW/ch high output power
Optional Super-high gain | NDCS shielding | Wurth inductor
Panasonic electrolytic capacitor | Femtosecond crystal | BUF634*4 output
Music listening, enjoyable and practical.
Listening impressions from Clark: MUB1's general sound design is consistent with QA361 and QA390LE. With high sound density and a strong sense of structure, this music is warm, sensitive, steady, and long-lasting to listen to. It has excellent hierarchical details and vertical spatial feeling.
The PCB area and power supply of MUB1’s DAC&headphone amplifier section are greater than those of QA361 since it lacks a player part. MUB1 is an inch long and an inch strong, and it has a few advantages over QA361 in terms of sound quality. These advantages include a larger sound field, a more complete sound structure, a sound that is softer and more durable to listen to, greater sound dynamics, and more solid mid- to low-frequency reproduction.
How could such lovely and sweet music not make you feel something? Therefore, I believe that each enthusiast needs at least one MUB1.
24Bit 96K high-definition Bluetooth
Receive mobile streaming input without bundling for convenient and good enough sound

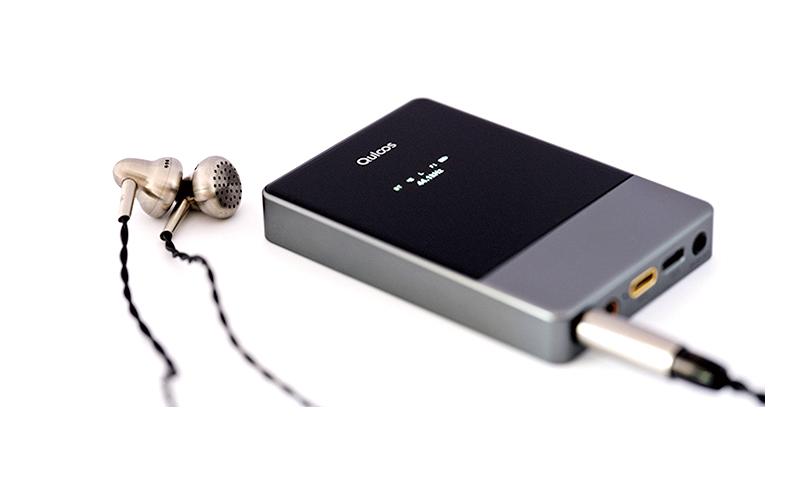

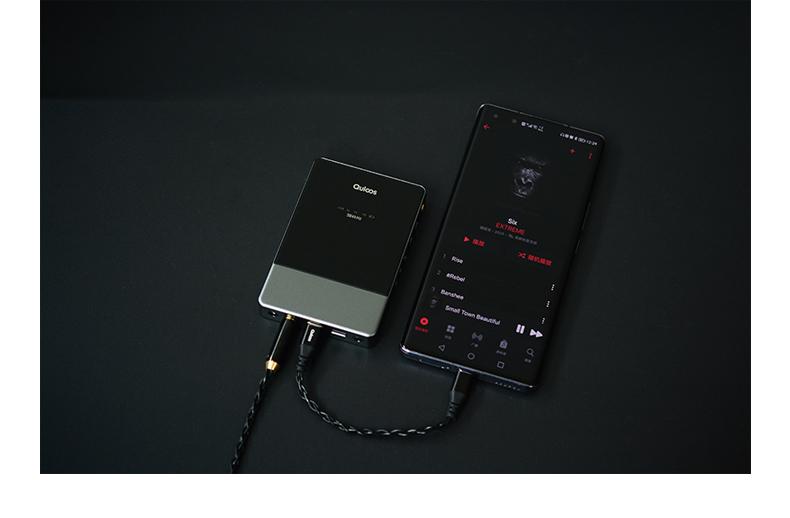

Mobile phone connection DAC&Headphone amplifier
Pure and abundant local battery power supply
No anxiety of phone battery with excellent sound

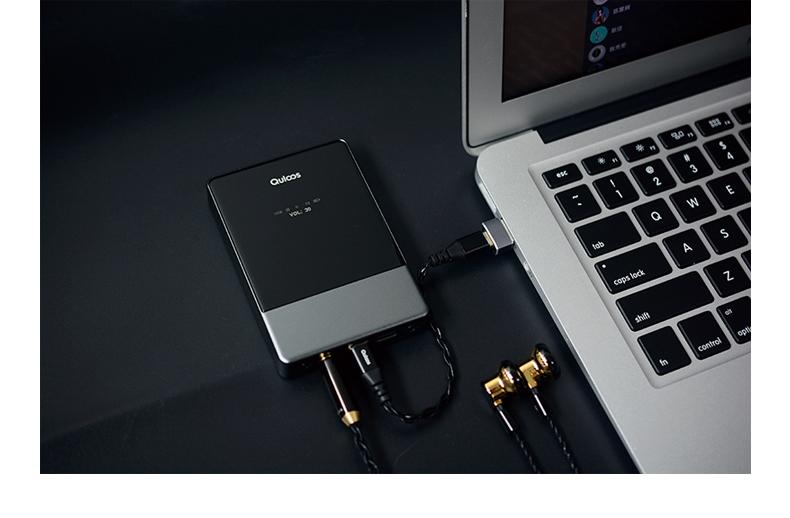

Office desktop PC-HiFi
Desktop small DAC and Headphone amplifier all-in-one machine]
Act discrete enough without discrete voice

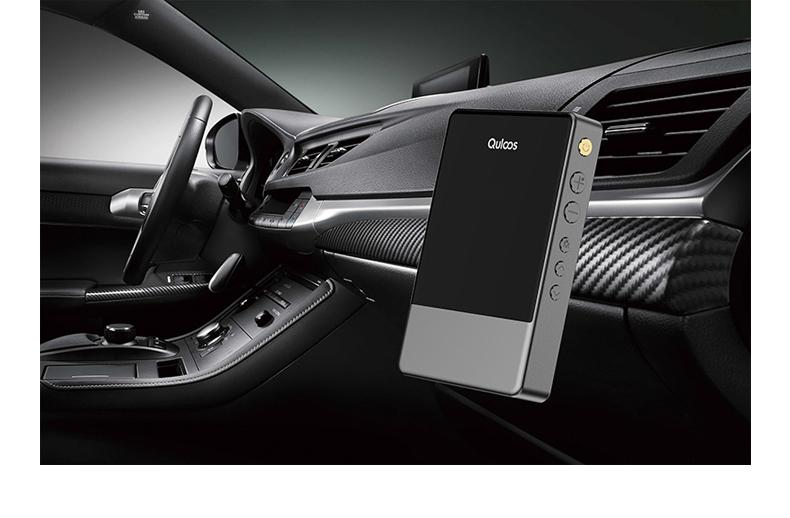

Car HiFi audio source
Coaxial / optical input to DSP, or AUX to host
CAR mode with good sound, more convenient

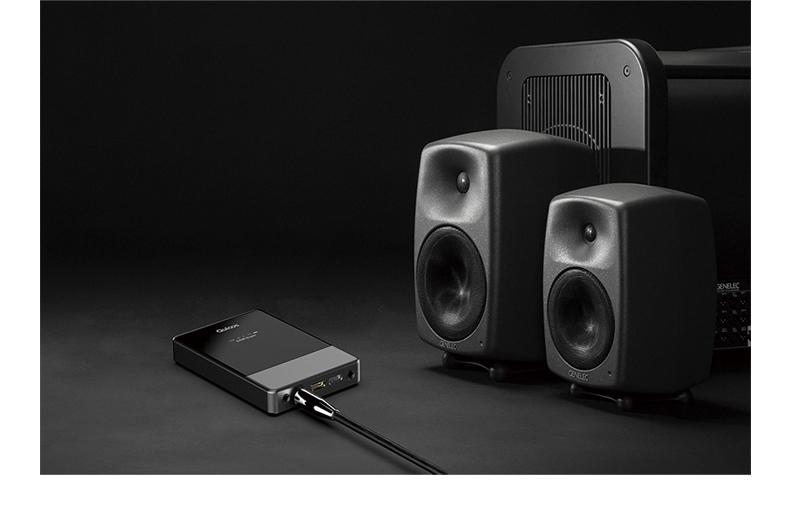

Home speaker system
Expand high sound quality mobile streaming input function
Simple enough, practical enough, and good sound enough
Sufficient power margin
The sound is more easy and adaptable

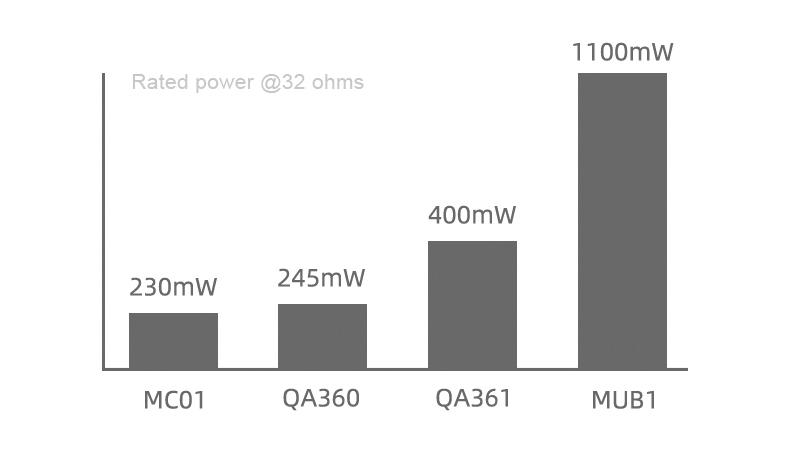

MUB1 balance port output power up to 1100mW/ch
It is much greater than the output power of many flagship players
Put fine timber to petty use
Modern machines pursue testing parameters
The sound gets more flat and ordinary as the gain drops
MUB1 returns to traditional old machines with over 10 times voltage amplification
Outstanding musical taste causes listeners to unconsciously dance to the music
Realistic visuals set to vibrant, exuberant music that seems just out of reach
Use desktop HiFi materials
Make MUB1 sound more like a real HiFi device

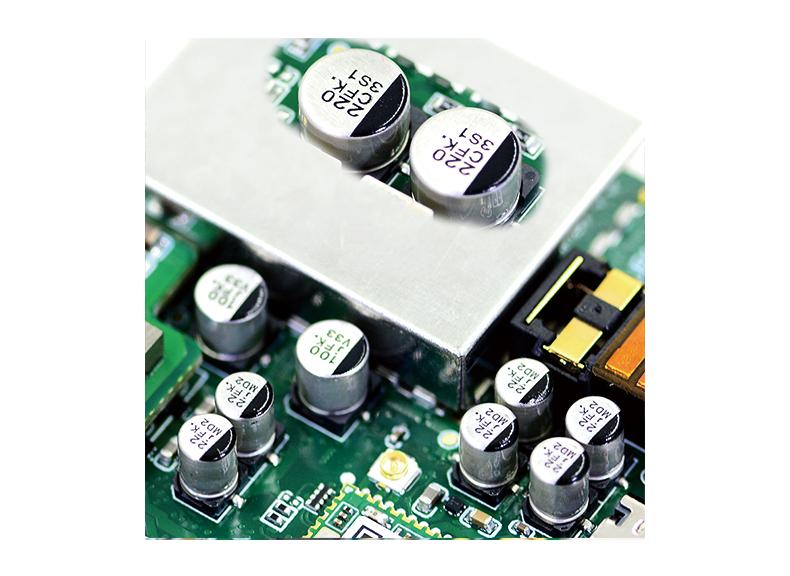

Audio electrolytic capacitors are rarely used in portable goods.
Panasonic electrolytic capacitor with rare sound dense sense of space

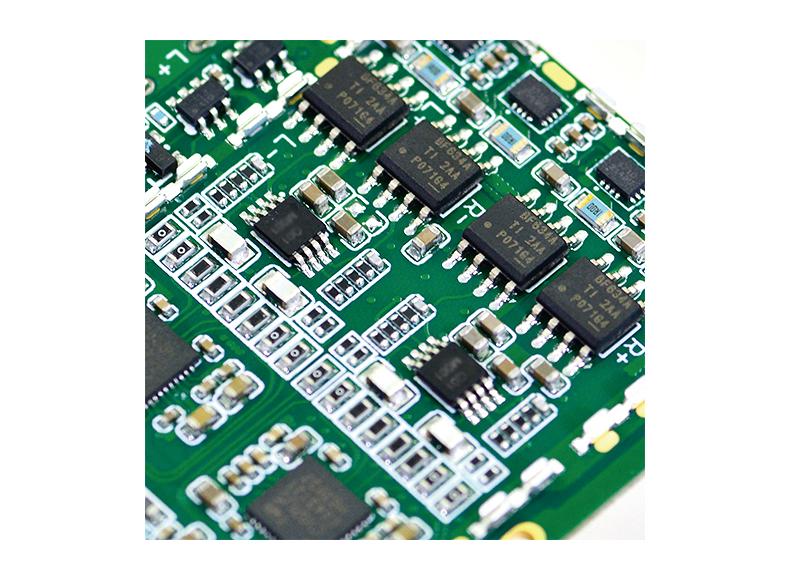

The BUF634 provides a more scaled sound

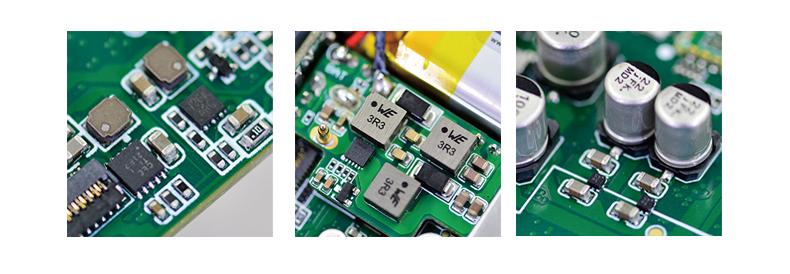

Low internal resistance Wurth inductor with stable and atmospheric sound
Design of a power supply that is broadband, low noise, high transient, and low in internal resistance
Up to 14 power sources provide independent power supply for each circuit part, ensuring purity and stability
This battery cable is combination of HiFi wires using different materials, resulting in a noble sound.
Analog power supply voltage of up to 16V at Super-high gain, with sound more open.
Design of a low noise power supply with analog and digital separation, achieving seamless sound
MUB1 selected femtosecond crystal oscillator
High precision, with a nominal jitter of only 150fs
Good crystal oscillator with stable sound
Bluetooth 5.0, CSR 8675 optimization module with good sound
Supports 24Bit/96kHz high-definition Bluetooth
Specially optimized Bluetooth overall design
The information content and sound density are already very close to USB connections
NDCS dead corner free circuit shielding technology
Stable connection without interference, pleasant to listen to, and better to use
Support 32Bit / 384kHz, DSD256
Android, iPhone, and tablet ready to use
Local batteries are pure and plentiful. the sound quality is higher
ASIO driver, compact PC HiFi all-in-one machine for Windows desktop
Act discrete enough without discrete voice
UAC2.0, Linux, MacOS drive free,
The USB OTG output of HiFi player can also be used
Support UAC1.0
MUB1 has optical and coaxial outputs, and Line out can also be set
One line connection to the car audio DSP is sufficient, simple and convenient
Connect to the host Aux in through level setting Aux out
Both Apple and Android phones can increase the volume on the phones, making it more convenient
In CAR mode, following USB power to automatically switch on and off, more worry free
Start liking Cirrus Logic DAC due to the good sound quality of CS4398
It has the uncommon natural, enjoyable, and smooth sound of a contemporary DAC
The new generation CS43198 and 43131 have better designs
The sound is more precise and realistic thanks to the special NOS option.
Using 4 CS43131, eight channel DAC designed as two channels
Each four channel DAC is for providing more detailed and louder sound

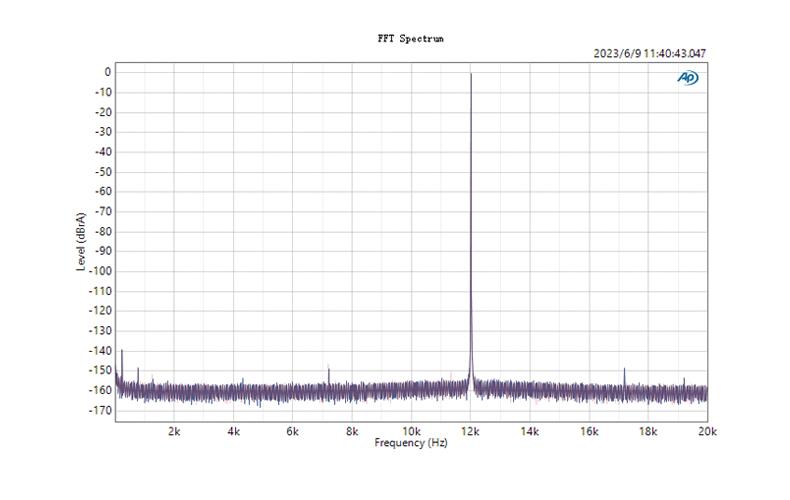

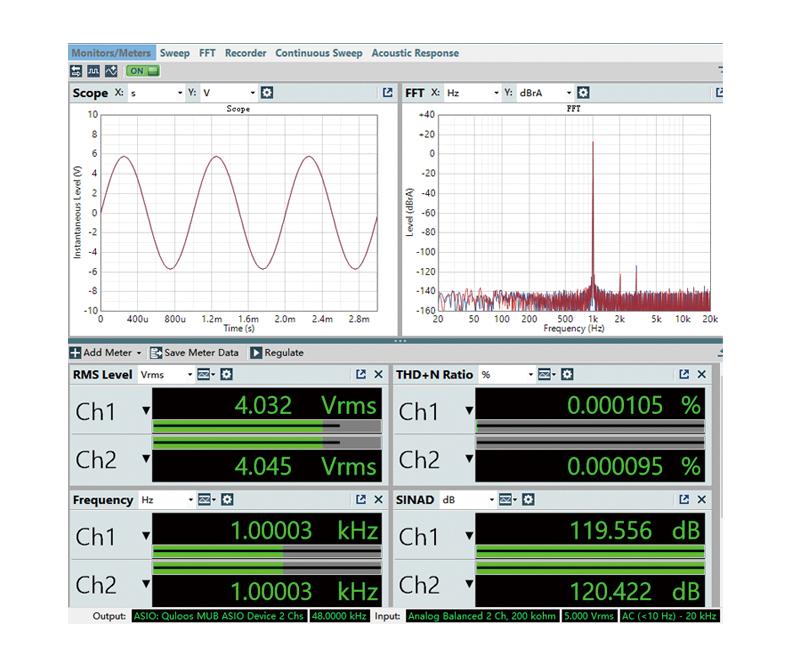

MUB1 overall distortion is better than the theoretical value of DAC chips
Compared to the USD $2000 flagship HiFi player, it is not inferior

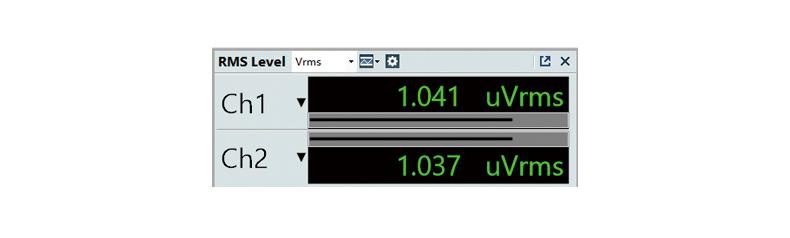

MUB1, whether single ended or balanced, the medium and low gain noise <2uVrms
50% of 4uVrms noise at low gain only for QA361

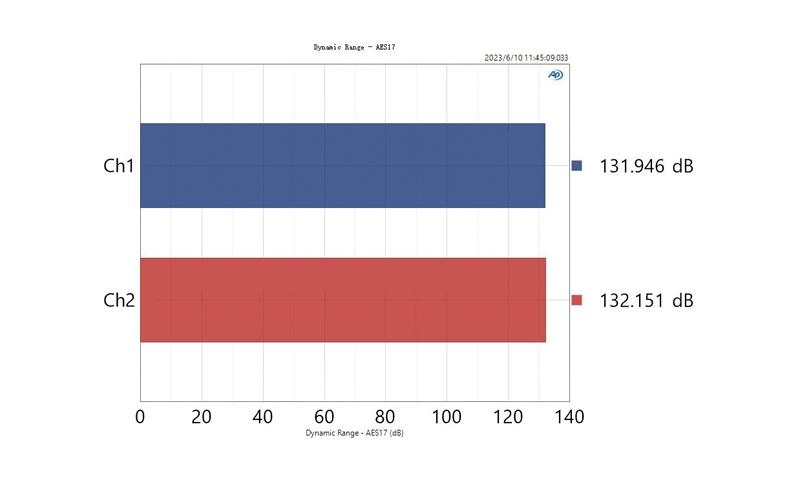

The signal-to-noise ratio is as high as 132dB
High sensitivity headphones also struggle to hear background noise

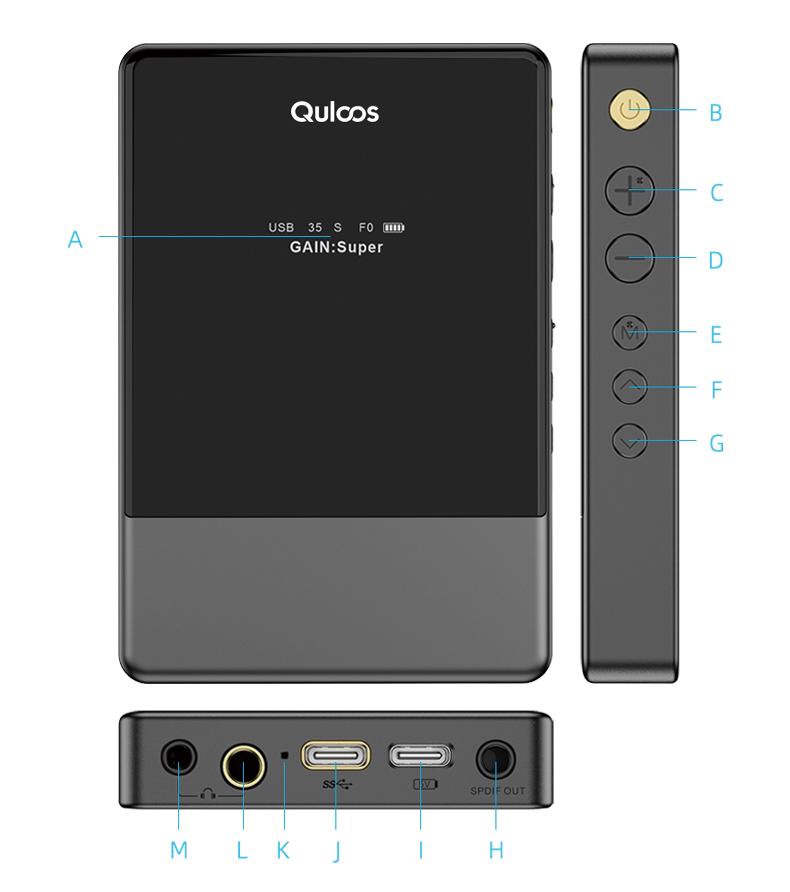

| A | Display area |
| B | Power button: Long press to turn on/off, short press to turn off/wake up the display screen |
| C | Volume +: Short press to increase the volume by 1, long press to continuously increase the volume by 1 |
| D | Volume -: Short press to decrease the volume by 1, long press to continuously decrease the volume by 1 |
| E | Setting key (M): Short press to enter the setting interface, long press to pause/play, short press to connect/hang up when calling, long press to reject |
| F | Previous track (↑): Switch to playing the previous track and adjust the parameters upwards when setting the interface |
| G | Next track (↓): Switch to playing the next track; Adjust parameters downwards when setting the interface |

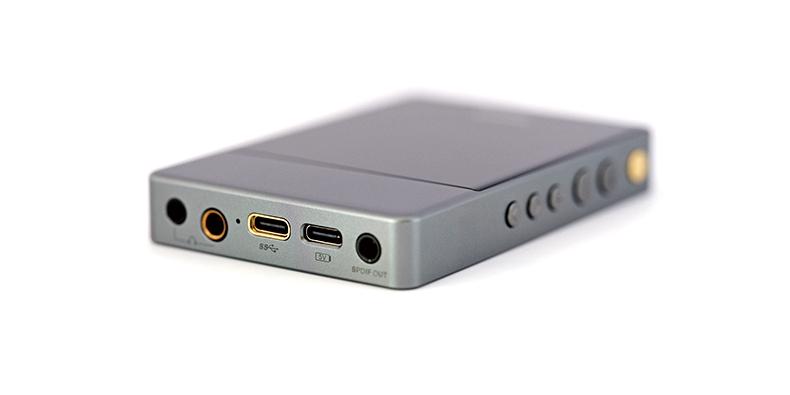

| H | Digital audio output port: 3.5 optical and 3.5 coaxial (pin definition is shown in the figure below) |
| I | Type-C charging or external power input port |
| J | Type-C audio OTG input port |
| K | Microphone pickup hole |
| L | 4.4 balanced headphone port, also used as a balanced LO port |
| M | 3.5 single ended headphone port, doubles as LO/AUX output port |

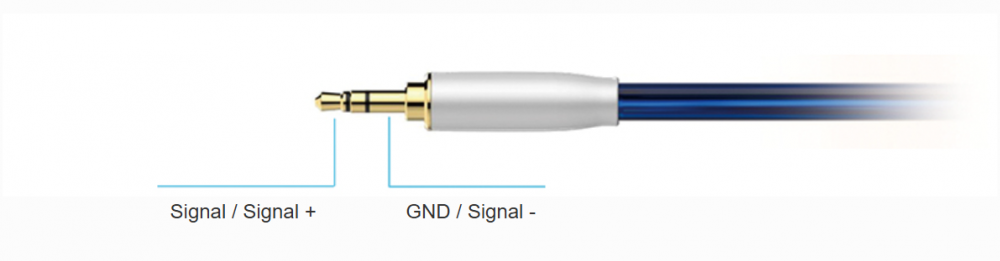

Description of 3.5 coaxial line foot position
| Item / model | Balance port | Single port |
| Body size | 96*65*14.5mm (L * W * H) | |
| Host weight | 142g | |
| Input interface | Type-C USB data, Type-C USB power supply&charging, wireless Bluetooth | |
| Bluetooth format | Bluetooth 5.0, LDAC, APTX, APTX-HD, ACC, SBC | |
| USB protocol | UAC2.0 protocol / UAC1.0 protocol, supporting Windows, Mac, Android, iOS systems | |
| USB port DSD sampling rate | 2.8224MHz (DSD64), 5.6448MHz (DSD128), 11.2896MHz (DSD256), Native or DoP | |
| USB port PCM sampling rate | 16Bit ~ 32Bit, 44.1kHz ~ 384kHz | |
| Output interface | 3.5 single ended 4.4 balanced headphones (can be set to Line out/Aux out), 3.5 optical or coaxial SPDIF digital output | |
| Optical / coaxial output | 16Bit ~ 24Bit, 44.1kHz ~ 192kHz PCM, DoP64 | |
| DAC chip | CS43131 * 4 pieces, QFN large package | |
| OP | Selected 2 OP* pieces with excellent texture and musical appeal | |
| Headphone amplifier chip | BUF634A * 4 | |
| Gain control | Low / Mid / High / Super-High | |
| Volume control | This device has a volume level of 100, which can be independently adjusted from the phone volume | |
| Frequency response | 20Hz ~ 20kHz ±0.5db | |
| THD+N (AES17 (20kHz), A-weighted, unloaded, medium gain) | 0.0001% | 0.00015% |
| SINAD (AES17 (20kHz), unweighted, unloaded, medium gain) | 120db | 116db |
| SNR (A-weighted, medium gain) | 132db | 126db |
| Dynamic range (A-weighted, medium gain) | 132db | 124db |
| Crosstalk (unloaded, medium gain) | -140db | -137db |
| Crosstalk (32Ω, medium gain) | -95db | -73db |
| Output power (THD+N<0.01%, S-gain) | 1100mW + 1100mW @32Ω | 410mW + 410mW @32Ω |
| 250mW + 250mW @300Ω | 65mW + 65mW @300Ω | |
| Noise floor (A-weighted) | 1.2uVrms @G = L | 1.8uVrms @G = L |
| 1.2uVrms @G = M | 1.8uVrms @G = M | |
| 2.5uVrms @G = H | 2.5uVrms @G = H | |
| 8.3uVrms @G = S | 5.8uVrms @G = S | |
| Reference: High sensitivity headphones are also difficult to hear to the noise floor. When QA361 has low gain, the noise floor is 4uV. | ||
| Battery life | 8~10 hours | |
| Charging time | 2~3 hours | |
| Charger | Type-C charger (user provided), DC 5V, ≥2A | |
| External power input | Input from charging port Type-C, DC 5V, ≥2A | |
| Microphone function | Support Bluetooth calls with built-in omnidirectional microphone | |

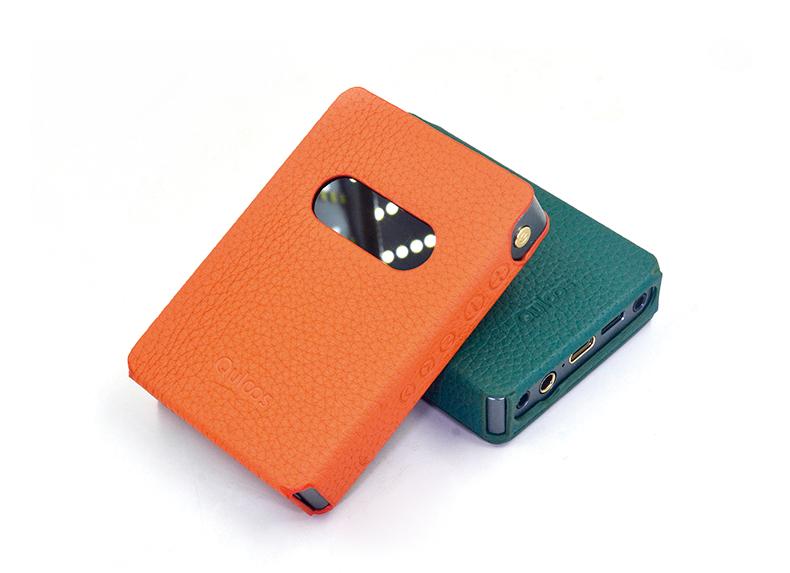

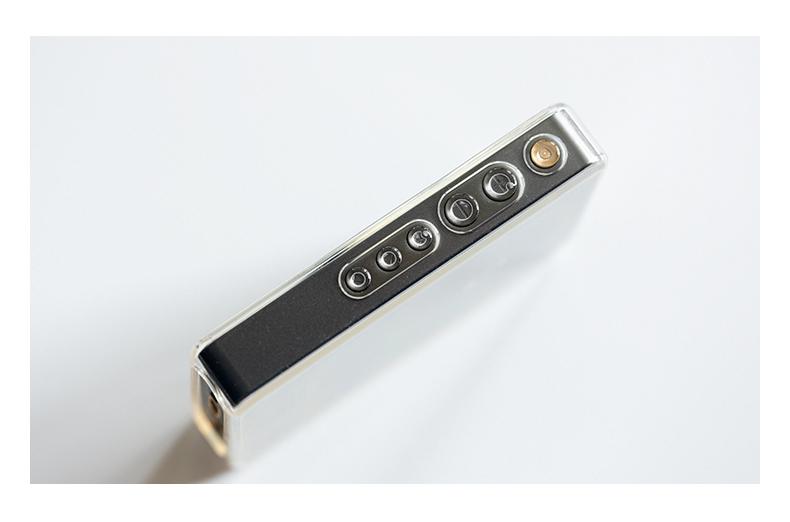

Note: The leather case in the picture is an optional item and needs to be purchased separately. Price:US $30.00
Note:
All components in the picture that are not included in the MUB1 product list, such as headphones, computers, speakers, and cars, are shown as shooting props and are not included in the product.
The internal drawings of the product are for reference only, and are subject to modification without prior notice.
The product pictures are for reference only, and everything is subject to the actual product.

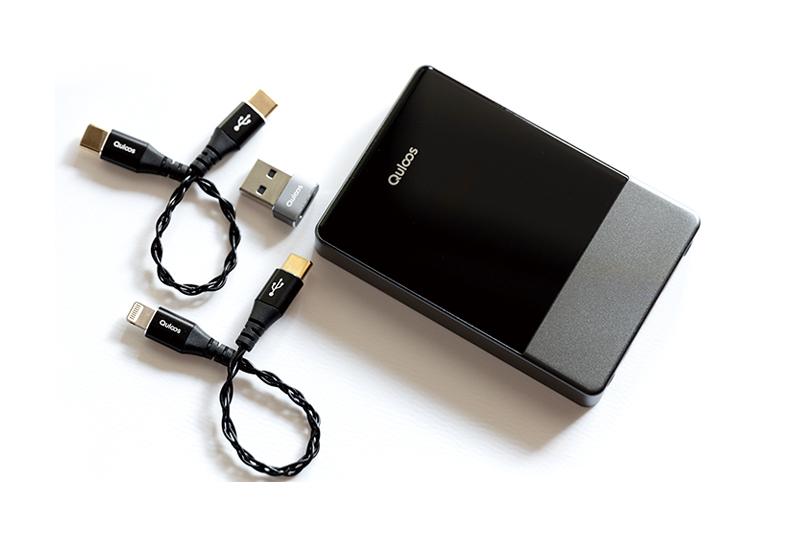

MUB1 machine, USB A to C adapter, Manual, TPU
For free: One Type-C, one Lightning connection cable, and one USB charging cable each.
